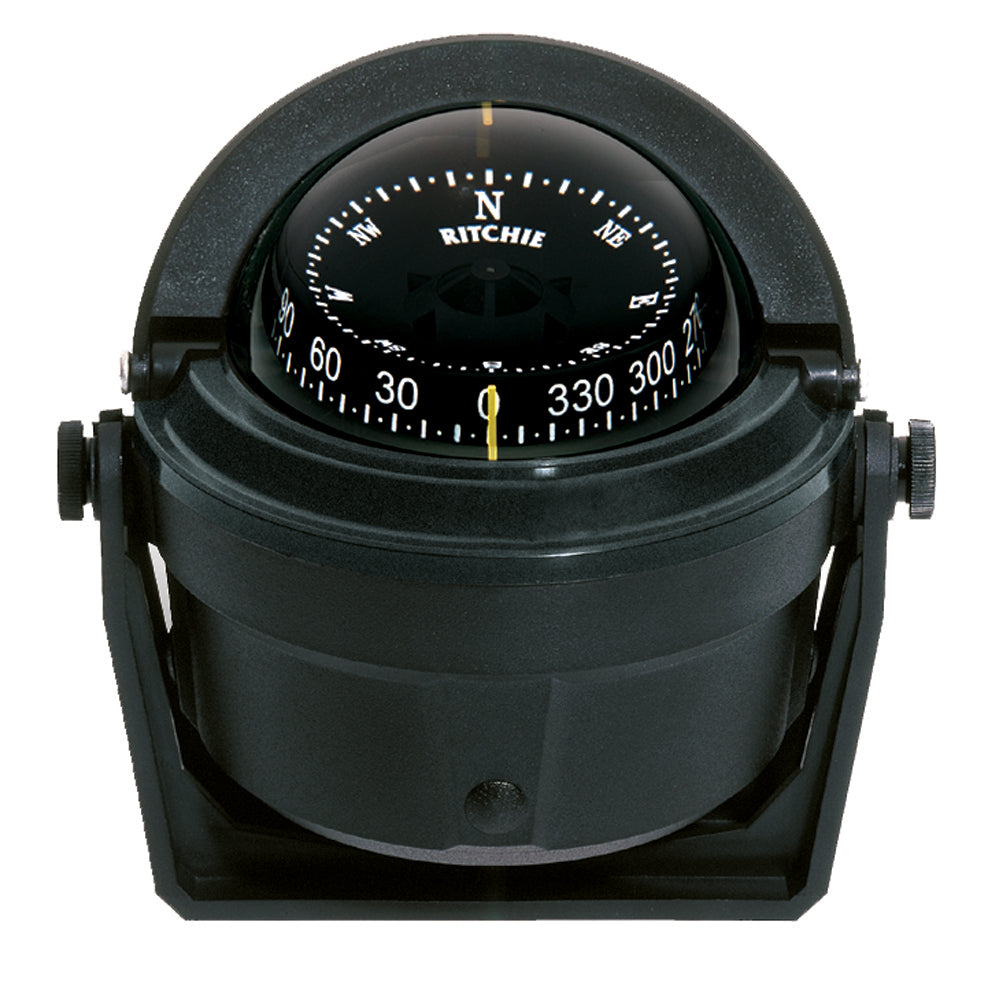

Ritchie B-81 Voyager Compass - Bracket Mount - Black [B-81]

Voyager Compass

Voyager Compass Features:

• 3" CombiDamp Dial

• Adjustable and Removable with Bracket and Thumbscrews

• Exclusive Built-in Green NiteVu Night Illumination

• Built-in Compensators to Easily Adjust for Deviation

• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement

• Powerful DirectiveForce Magnets for Fast Heading Lock-on

• Movable Sun Shield

• High Temperature Composite Construction for Extended Operating Range

• Custom Fitted Protective Covers Available

• 100% Repairable

• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 1lb 8oz (680g)

Notes:
All magnetic compasses come standard with 12 volt lighting. 24 & 32 volt lighting options are available.

Uses 2 sets of lights.

Specifications:

• Read: Both
• Mounting Style: Bracket
• Backlight: Yes
• Lubber Lines: Yes

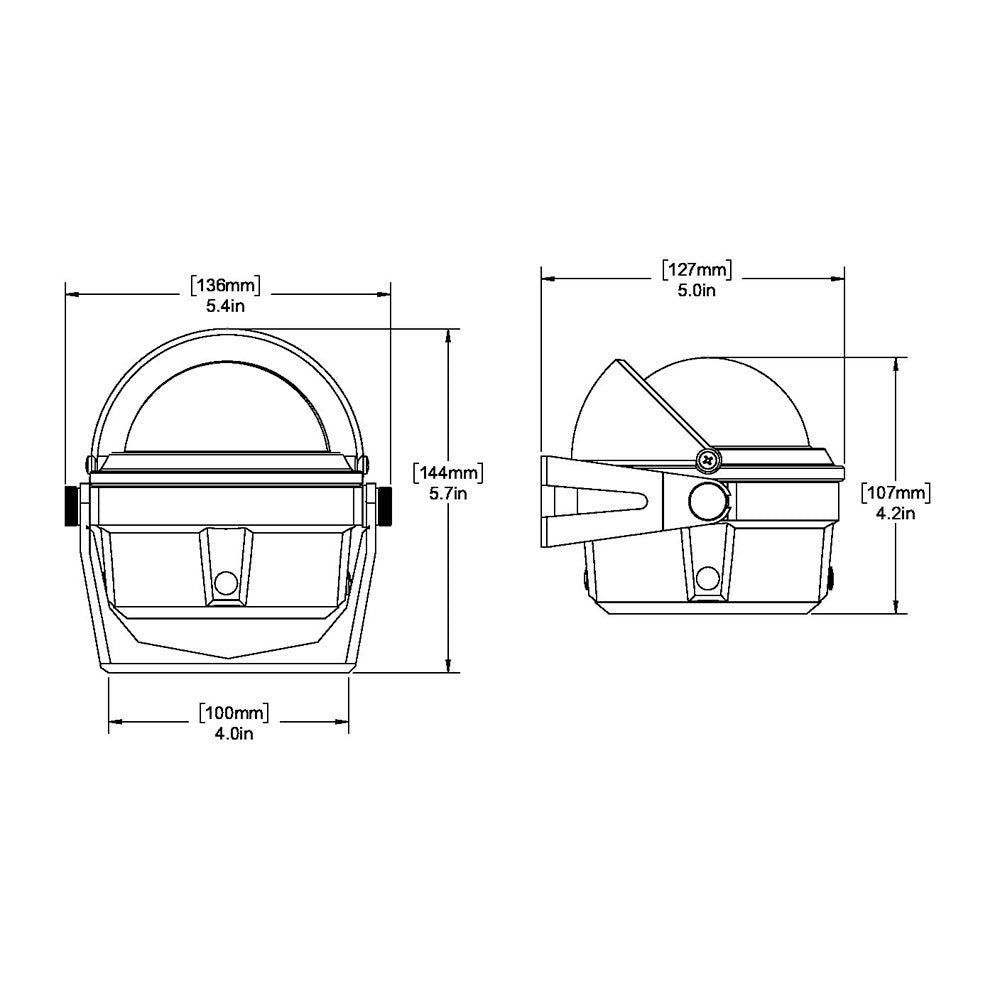

• Box Dimensions: 6"H x 6"W x 6"L WT: 1.4 lbs
• UPC: 010342141101

Quick Guide (pdf)
Owner's Manual (pdf)
